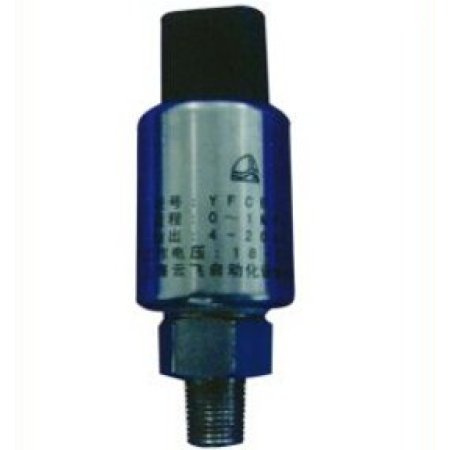

Polysilicon pressure transmitter
Home/Spare Parts/Others/
Polysilicon pressure transmitter
Polysilicon pressure transmitter

Quantity:

减少-不能操作
编组 3
Please Select:
Product Details
  • Sub Category:Sensor
  • IMPA/Product Code:--

The polysilicon varistor designed by the company is used as the signal acquisition source of the transmitter, and the signal processing is carried out by using the high-temperature-resistant imported ASIC. A linear current signal proportional to the pressure is obtained.

main feature:

  1. The ASIC handles the output signal of the sensor, and the working temperature can reach -30 ° C ~ 120 ° C;

  2. The self-designed compensation program performs linear calibration and temperature compensation, and the work is stable and reliable;

  3. Can be used in a variety of media;

The main purpose:

  1. Vehicle stability control;

  2. GDI fuel pressure;

  3. Gearbox

  4. Seat bearing sensing measurement;

  5. Various large pressure test systems;

Main Specifications:

  1. Measuring range 0~1 MPa; 0~2 MPa; 0~3 MPa

  2. Linear accuracy ±0.5%FS

  3. Working voltage 12~24VDC;

  4. Output signal 4 ~ 20mA;

  5. Response time ≤ 10ms;

  6. Compensation temperature 0 °C ~ 85 °C;

  7. Working temperature -30 ° C ~ 120 ° C;

  8. Comprehensive error within the compensation range Class A: ±1% Class B: ±2% Class C: ±3%

  9. The comprehensive error within the working range is ≤±5%:

Maximum load of 250Ω (sampling resistor) at 10.12VDC

Maximum load of 5000Ω (sampling resistor) at 11.18VDC

reliability:

  1. Pressure test pressure ≤ 2 times working pressure

  2. Medium stroke pressure ≤ 3 times working pressure

  3. Service life >107 (full scale)

Output wiring:

Pin 1 - power supply; pin 2 - output (three cores)

2nd foot - power supply; 3rd foot - output (four cores)
